Shang Hai Oushuo Packaging Machinery Co.Ltd S110
Manufacturer:
Model:
Machine status:
Year:
Machine ID:
Category:

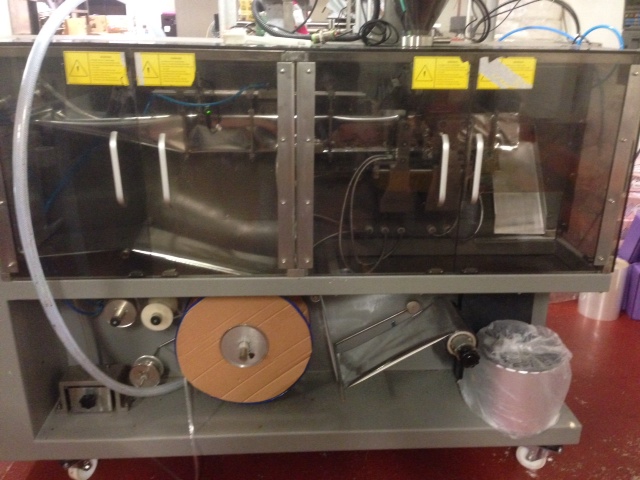

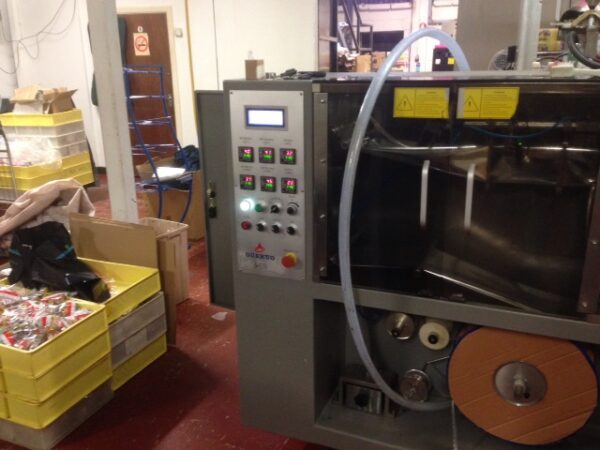

Oushuo Fully Automatic Horizontal Sachet Machine.
SOLD
This was purchased by customer and never used.
Model S110
It is suitable for such sectors including foodstuff, pesticide, pharmaceuticals, daily chemicals etc. The machine can choose from different filling methods according to nature of material including liquid, powder, particle, etc.
Features:
Mainframe Frequency Conversion System: Imported AC motor and frequency conversion, stable and reliable operation; low speed and large torque ensure excellent performance even under sharp fluctuations of load.
Servo Blanking System: Panasonic servo motor controls rotation of blanking bolt directly by pulse number; stable and reliable performance, convenience of regulation.
Package Making System: The package making and sealing and filling systems are independent to each other in this system. The two systems are linked and coordinated by mechanical coupling and programmable logic controller (PLC). Therefore, the system is suitable for a variety of products and sizes of package.
Finished Product Sealing System: Fully automatic production facility that finishes package making, metering, filling, sealing and other packaging processes by heat-sealing packaging material (polyethylene membrane, multilayer composite membrane etc.). The package shall be three-side or four-side sealed flat package. Fillers of different types may package a variety of products.

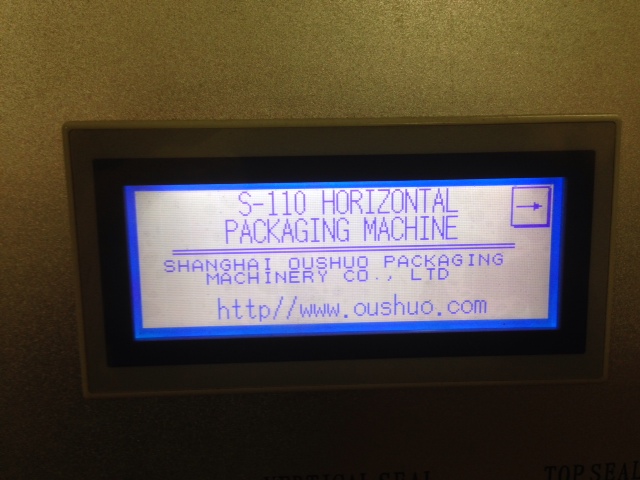

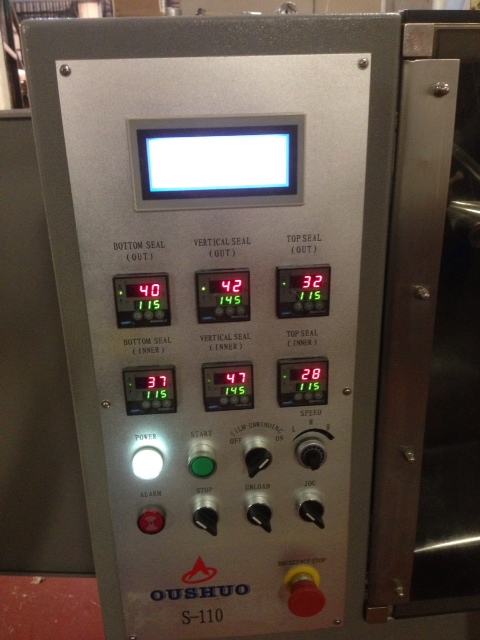

Integrated Control System: It is composed of PLC, frequency converter etc., featuring a high level of integration, strong control capabilities and high reliability of operation. Touch screen technology eases and facilities operation. The optoelectric transducer,
encoder, proximity switch etc. are all equipped with imported and advanced sensing elements, so the mechanical and electrical integration of the entire frame is embodied perfectly.
Technical Parameters:
Model: S-110
Package Width: 50mm~110mm
Package Height: 50mm~130mm
Max. Packaging Capacity: 60ml
Speed: 40~80 packages/minute
Error: ±1.5%
Membrane Roll Diameter: 400mm
Power Consumption: 2 Kw
Weight: 520Kg
Dimension: 2200mm×950mm×2300mm
Location: UK
SOLD
Use the “Make An Enquiry” button above to submit an email request. You can add one or multiple machines to your Enquiry List and use the form to request more details.
Call +44 (0)1255 852 111 for further details.
Machines are sold on ‘as is, where is’ basis.
It is the responsibility of the purchaser to ensure the machine is fit for purpose.
All prices quoted are exclusive of VAT.
Information and pictures displayed may not represent actual
product being sold but a likeness.
It is recommended the purchaser views actual machinery prior purchase agreement.
Machines advertised may be withdrawn from sale at any time without notice or reason.
