Frigoscandia FF-S2
Manufacturer:
Model:
Machine status:
Year:
Machine ID:
Category:
Frigoscandia FF-S2 Flo Freezer – Latest Model –SOLD
Manufactured in Year 2002
Serial Number: 01320027
Ready for Shipping on to 5 x 40′ Containers
Main benefits
• Flexible handling of a wide range of products, from basic to wet and sticky.
• Belt 1 with pulsator as standard and agitation as option.
• Long production hours, minimum 8hrs but 22 hrs with an optional ADF Included
• Operated easy and safe from outside.
• Optimised crust freezing due to 3D-air flow.
• Increased air velocity at infeed due to air modulators.
• Two plenum chambers.
• Open design – Easy access to all areas, easy and fast cleaning.
• Minimum of downtime, less than 2 hours with steam injection or hot gas/water defrost.

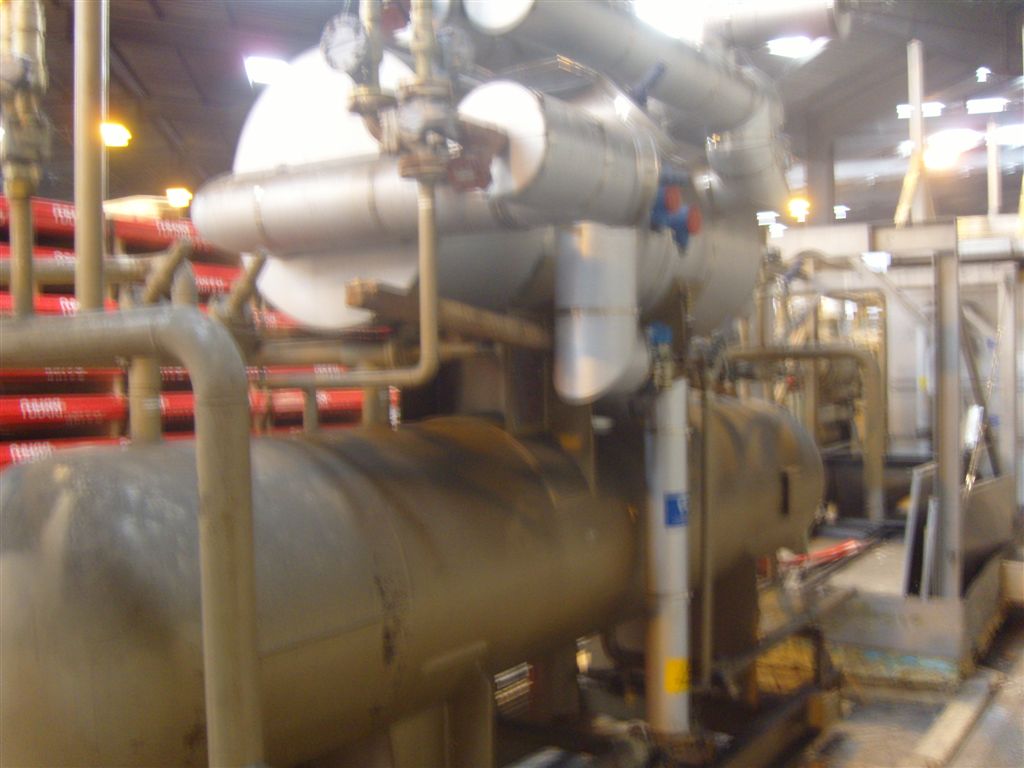

Refigeration Plant is also available at an additional cost
TECHNICAL
Model FF-S2
Capacity (kg/h) (1) 3400
Infeed temperature (°C) + 15
Outfeed temperature (°C) – 18
Refrigeration
Standard design R717 (Ammonia). Pump circulation ratio: 4-6
times evaporation.
Evaporation temperature (°C) – 40 °C at evaporator
Base load (kW) 88
Base load (kcal/h) 76000
Evaporator volume (litre) 700
Electrical
Voltage 3 x 400 V, 3 x 415 V; 50 Hz or 3 x 440 V; 60 Hz
Normal power consumption (kW) 85
Maximum power requirement (kVA) (2) 131
Motors of more than 1 kW rating at – 30 °C (installed power) 4×22.7, 3×1.1
Defrost system, water consumption
Evaporator rinse (spraying time ~ 15 min.) (lit/min) (3) (4) 2×75 2×150 2×225
Belt rinse (lit/min) 4) 2 x 100
ADF air volumes (optional)
Normal consumption (lit/sec) (5) 35
Required air capacity (lit/sec) 44
Noise emissions (6)
Along freezer wall Maximum 89 dB(A)
In front of in- and outfeed openings Maximum 92 dB(A)
During ADF-shot, along evaporator wall Maximum 93 dB(A)
1) Based on green peas. For other products see manualsheet “Capacity guidelines”.
2) Value for dimensioning of power supply cables/fuses. Valid for 50 Hz system.
3) Water temperature +50 °C gives two hours turn around time.
4) 150 kPa (1,5 bar) at connection point and at rated flow.
5) Temperature max 30 °C and 700 kPa (7 bar).
6) Warm freezer, according to Machinery Directive 89/392/EEC, 1.7.4 (f).
Excellent Value
SOLD
