Manufacturer: Bradman Lake
Model: COLL-WRAP-ITSW
Category: Tray Shrink Packer
Output: 25PPM
Year: 2006
Status: For Sale
Machine Notes:

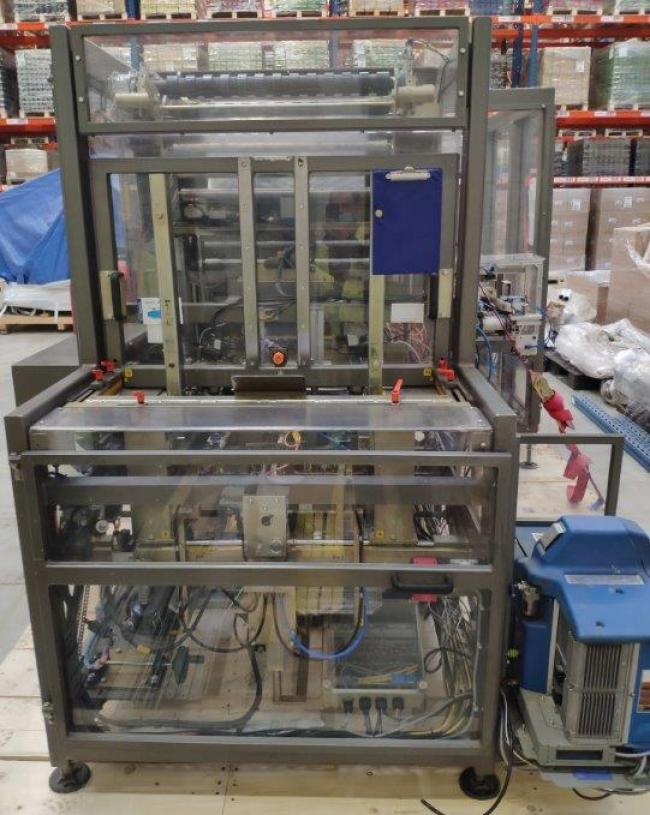

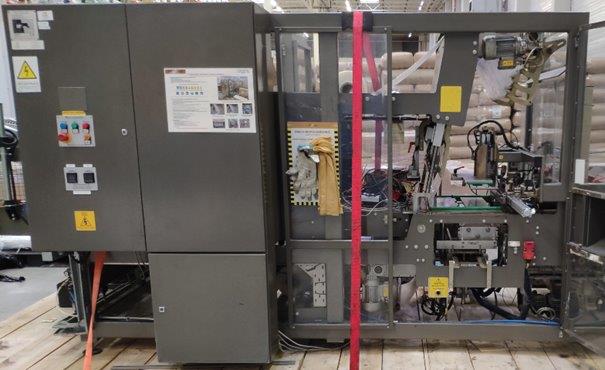

Bradman Lake - Europack Tray Loader and Shrink Wrapper

Year of Manufacture: 2006

Product:    Boxes for tea

Size:         52-220 mm long x 23-120 mm high x 50-220 mm wide

Capacity: 25 ppm

Technical parameters:

a)    Drive: Lenze

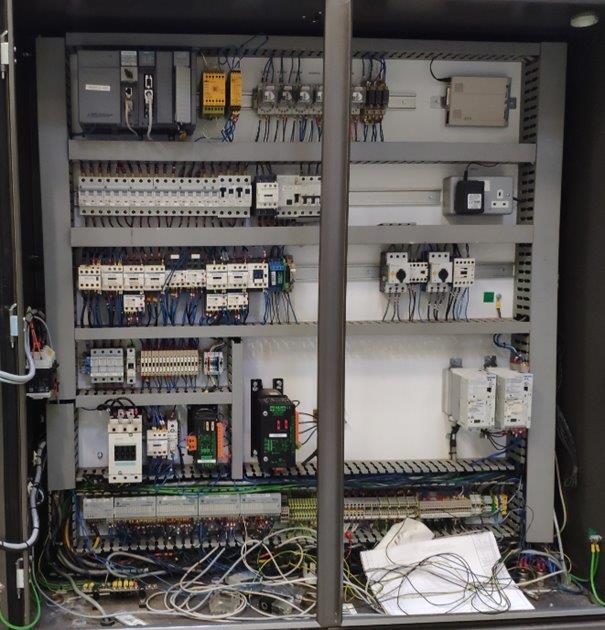

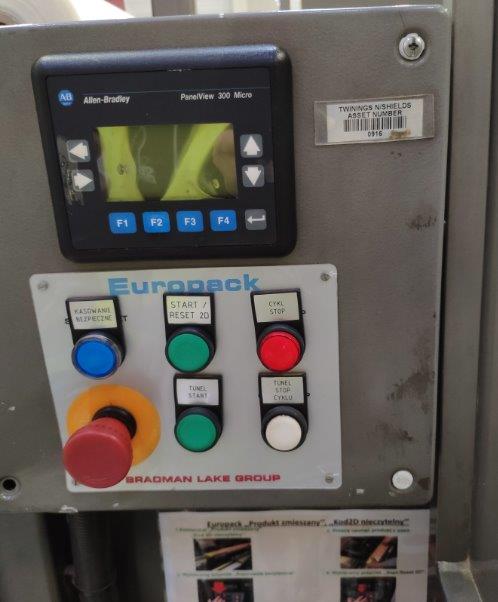

b)    PLC control: Allen Bradley SLC5/03

c)    Pneumatic component: SMC

d)    Glue system: Nordson

e)    Machine construction: Painted carbon steel with policarbon cover

f)    Electro-installation: 3 PEN 50 Hz, 400 V

g)    Installed power input:: ~22 kW

h)    Air pressure: 0,6 Mpa (6 bar)

i)    Air consumption: n/a

j)    Machine dimension LxWxH [cm]: 290x210x235

k)    Machine weight [kg]:2000

l)    Machine documentation: english

Location: Poland
