PYRAMID TEA PACKING MACHINE (up to 100bpm)

+ OUTER ENVELOPE MACHINE - KH-400 (up to 80bpm)

The line includes the following:

1. Model #  APO 11 P - Miflex automatic Pyramid Tea bag machine

(8 load cell-weighing system). (60 mm x 60 mm – standard size)

PYRAMID MACHINE – MIFLEX MODEL # APO-11P

The Pyramid Tea bag machine MIFLEX model #  APO 11P is a high performance tea bag packing machine capable of producing a triangular and a rectangular Teabag with or without heat sealed outer envelope.

Technical data:

Electrical supply -                              3x400V/230V 50Hz

Pneumatics                                                       6 bar

Installed power                                                3,5 kVA

Compressed air consumption -                         2,5 m3 /h

Overall dimensions of APO-11P -    2000mm x 2500mm x 3500mm

Weight:                              1100 kg

No. of Staff required to operate:             1 person

Packing material:                     Nylon, PLA, other ultrasonic sealed

Width of packing material                         140mm  max.

Diameter of material reel                           500mm

Reel core diameter:                         75mm

No. of reels installed on machine :              1 reel

Dimensions of bag with tag and thread:    60mm x 60mm

Product:

Tea or fruit tea with fraction dimensions:           12 – 15  mm

Bag's weight                            from 2 to max. 4gram

Max. Volume of  product                25cm³

Efficiency:



Output - max. 100 Pcs/min

(Depending on the type of teas and materials used)

Construction:

All components of Pyramid machine APO-11P are placed on self-supporting steel frame covered by protections. All machine elements having direct contact with packed product are made of materials approved by the State Institute of Hygiene (PZH).

All components are easy for cleaning.

This machine is equipped with an ultrasonic sealing and cutting system, and with a variable adjustment of speed.

The basic sub-assemblies APO-11-P Pyramid machine:

•     Packing material unwinder

•     Guide rolls

•     Seam molding system

•     Vertical ultrasonic sealing system

•     Horizontal ultrasonic sealing syste

•     Main drive with regulation of working speed :  10-100 cycle/ min.

•     8 load cell-weight dosing system

•     control cabinet

 Accessories:

1.    Control

•     PCD - SAIA Swiss company

•     sensors

•     visualization of error conditions

2.    Pneumatics by 'METAL WORK' company

3.    Mechanic and pneumatic drives

4.    Variable adjustment of speed

5.    Moved elements protected by guards

6.    CD -  machine program

Protective system – residual current operated protection device.

Mechanical protection – guards.

Working conditions – general-purpose production room

Location: North America

Please contact us for further details.

Competely refurbished in the last two years.

Updated with a new Starflex Controller.

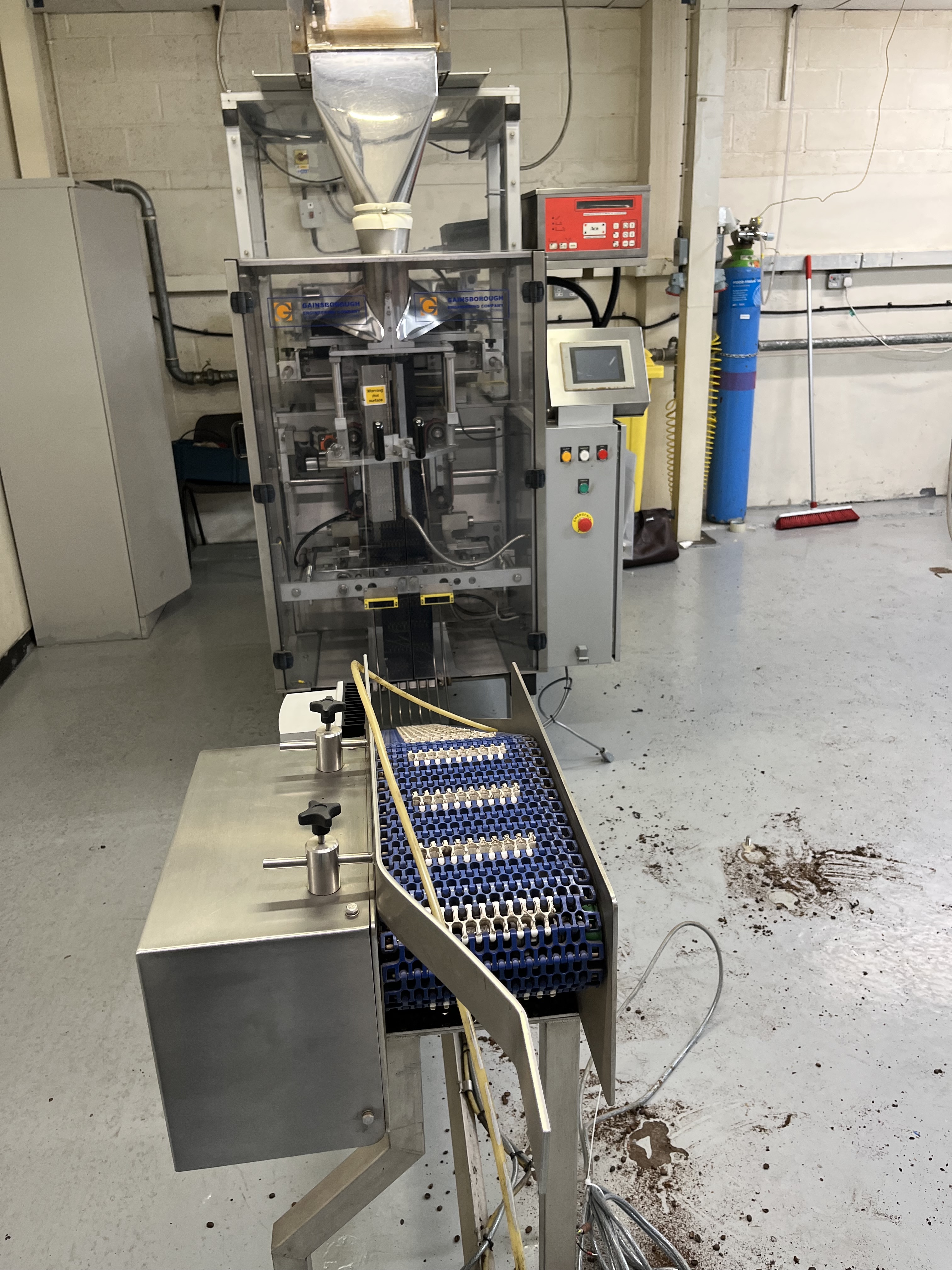

It was packing whole bean coffee into 250gm, 500gm and 1Kg preformed bags at speeds of approx 8 bags/min, dependant on operator.

It is available immediately for sale.

Very good running condition.

Location: In storage in Yorkshire

It is available with an Astrapac Vertical Bag sealer for sealing preformed bags if required.

This 30Kg roasting line comes complete with the following:

1 x Cyclone for Chaff collection

1 x Cyclone for dust recovery mounted on line ejection air cooling tank

6 x Silos for roasted coffee

1 x Nilfisk Vacuum green bean loading system.

Heat Source: Baltur Burner on Natural Gas

Power: 3 Phase electrical connection required.

It is designed with a single heat source by way of an an external Combustion Chamber, that recirculates the hot air through the drum, and then out through the cyclone and clean air from the cyclone is circulated back into the combustion chamber, therebye creating energy savings of approx 20-25% compared to standard drum coffee roasters.

A small quantity of this hot air is released to allow clean air back into the circulation.

This will do back to back roasting with an average of 4 roasts per hour.

Bottoni have been manufacturing these roasters for over 20 Years.

Location: Italy

It is still currently in situ but will be dismantled and can be made ready for sale immediately as required.

Great value 30Kg roasting line with silos available immediately.

This is currently located in Southern France where it was being roasted on daily providing speciality grade roasted coffees to the owner's several coffee shops.

It comes complete with an external Cyclone for chaff collection.

Fitted with Atmospheric Gas Burner (Low Nox).

Fitted with 4 Direct Drive Motors for Drum, Cooling Tray arms, Roaster fan and Cooling Fan for quiet running and low maintenance.

Adjustable air flow either automatically or manually.

It can roast and cool simultaneously, thereby creating potential output of 12Kg per hour.

Roaster Dimensions (L x W x H) mm: 1750 x 1000 x 1660

Gas requirements: It is set-up to run on LPG Gas

Electrical requirements: 3 Phase connection 3-N, 415V - 50Hz - 20Amps

The roaster runs with Artisan Roast profiling software in conjunction with Joper's Brigus software.

The roaster can be run in manual automatic mode, where the burner follows a roast profile preset but under the manual automatic mode, it can be over ridden manually if and when required.



This roaster has been very well maintained by the current owner and is in very good operational condition.

Several videos available on request.

Great value roaster for its age and condition and is available immediately.
