Spreafico Srl SRC 6 Coffee Capsule Line

Manufacturer:

Spreafico Srl

Model:

SRC 6

Machine status:

For Sale

Year:

2017

Machine ID:

1723

Category:

Coffee Equipment

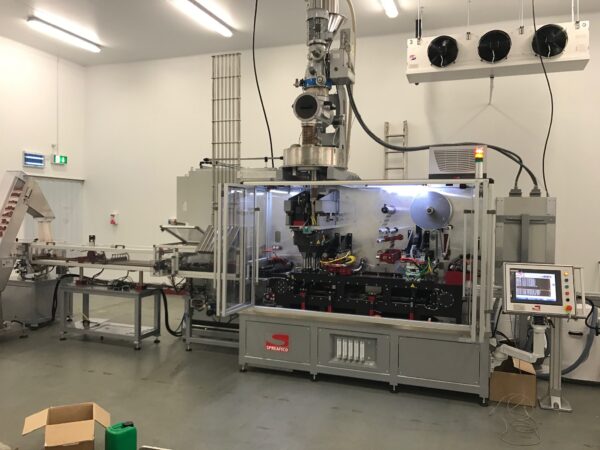

Spreafico 6 Lane Coffee Capsule Packing Line for sale

Runs on Capsulin PBT and IML (Nespresso Compatible) Capsules.
It will also run on Compostable Capsules.
Possible adaptation to run also on Aluminium Capsules

Model: Coffee Capsule Filling System D.37 “SR6N”

Year 2017
Complete with Spreafico Top Loading in-line Cartoner – Year 2017.

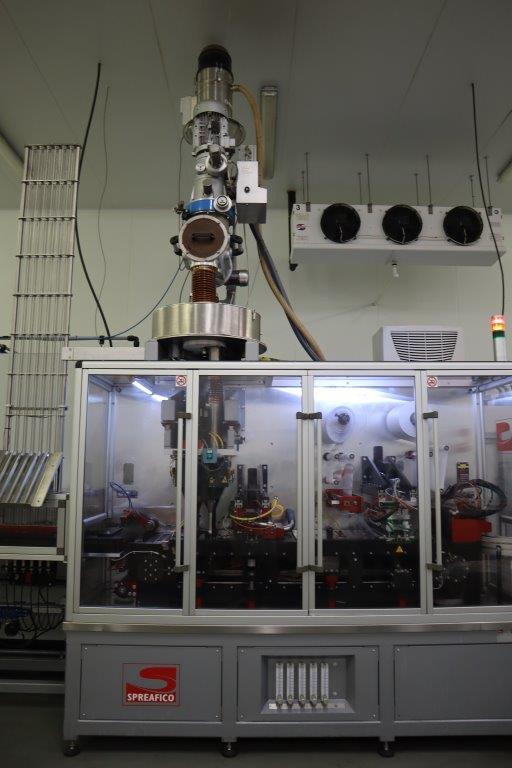

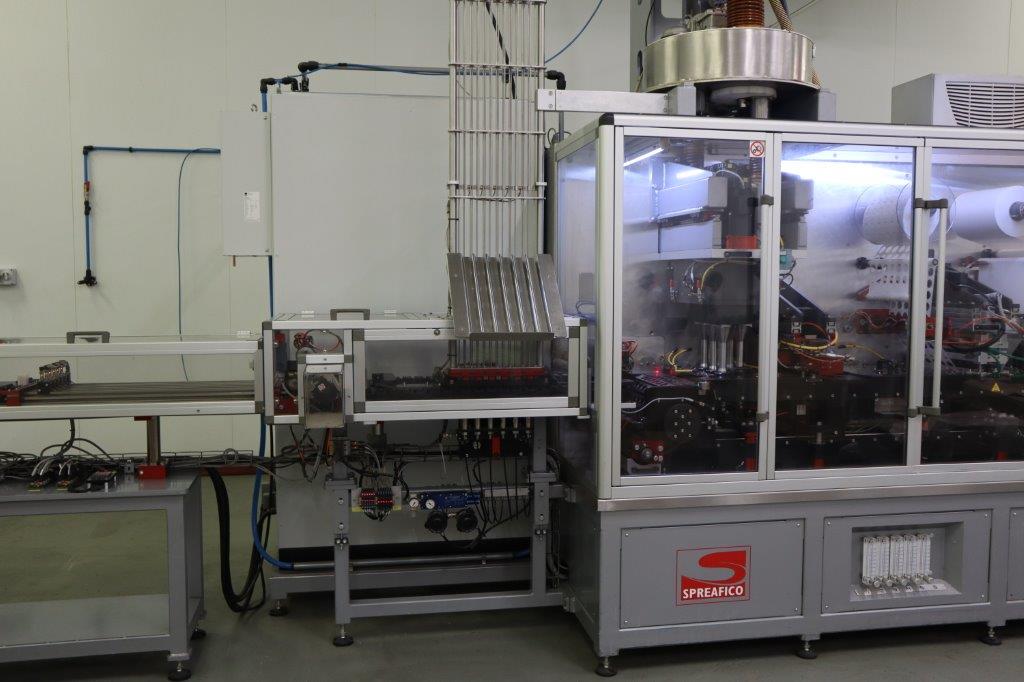

This is the latest generation Coffee Capsule Filling and Packing Equipment built by Spreafico Srl. in Italy.
The mechanical stations are moved by a camshaft system.

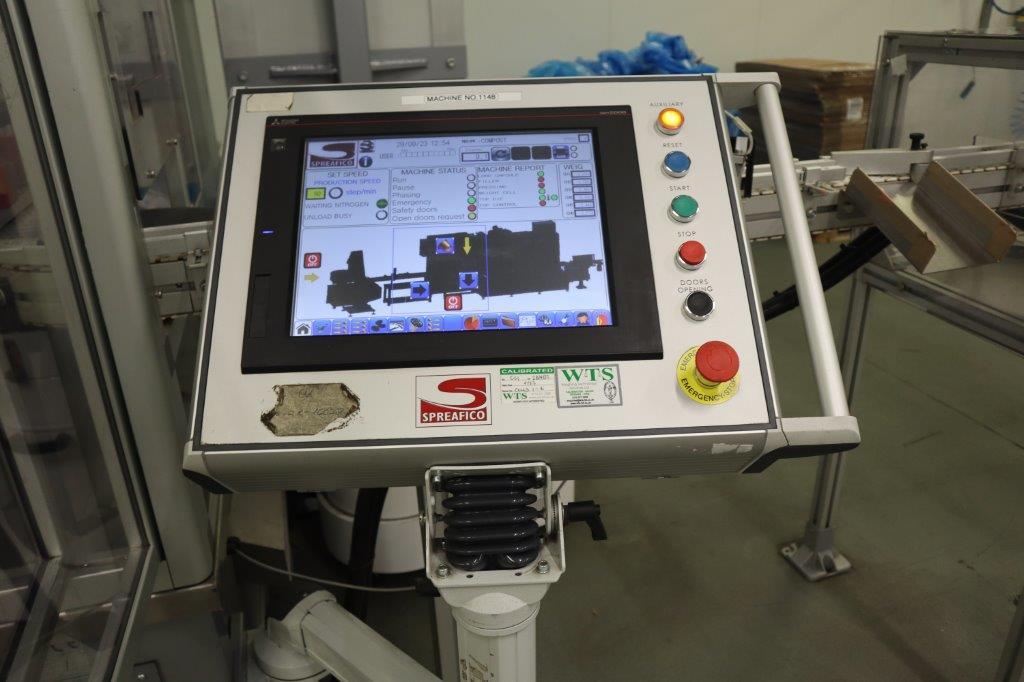

15″ touch-screen operator panel for the utilization and monitoring of the machine function status.

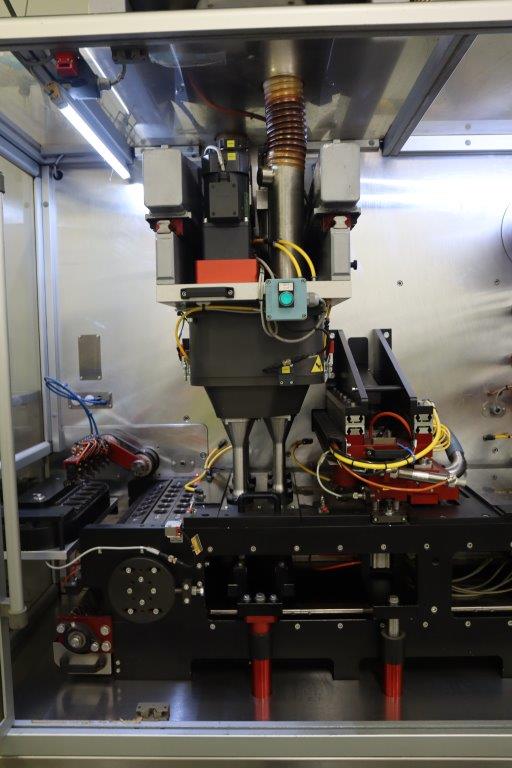

The coffee is dosed through an Auger dosing system which is driven by a brushless motor.
Prearrangement for Nitrogen Tunnel.
In-line weighing system.
Capsules can be closed on top with Aluminium Foil, micro perforated, filter paper, triplex coupled, PP Lid.
Possibility of inserting filters and diaphragm into the capsule and on its bottom.
This machine can run with coffee, tea or any other soluble product.
Capsule Machine SRC6 Technical data
  • Output 300-360 capsules/minute.
  • Dosage tolerance: +/- 0,2 gr – with feedback
  • Installed power 20 KW
  • Compressed Air: 6 Bar filtered and dry
  • Pneumatic consumption (Nl/h) 40000
  • Nitrogen consumption (Nl/h) 150000
  • Air Compressed Consumption (Nl/h) 50,000
This line has the tooling and set-up to run various types of Capsule including:
Capsulin PBT and IML with the following films:
  • 20-micron foil for PBT capsule
  • 30-micron foil for PBT
  • 20-micron foil for IML (PP)
  • 30-micron foil for IML (PP)

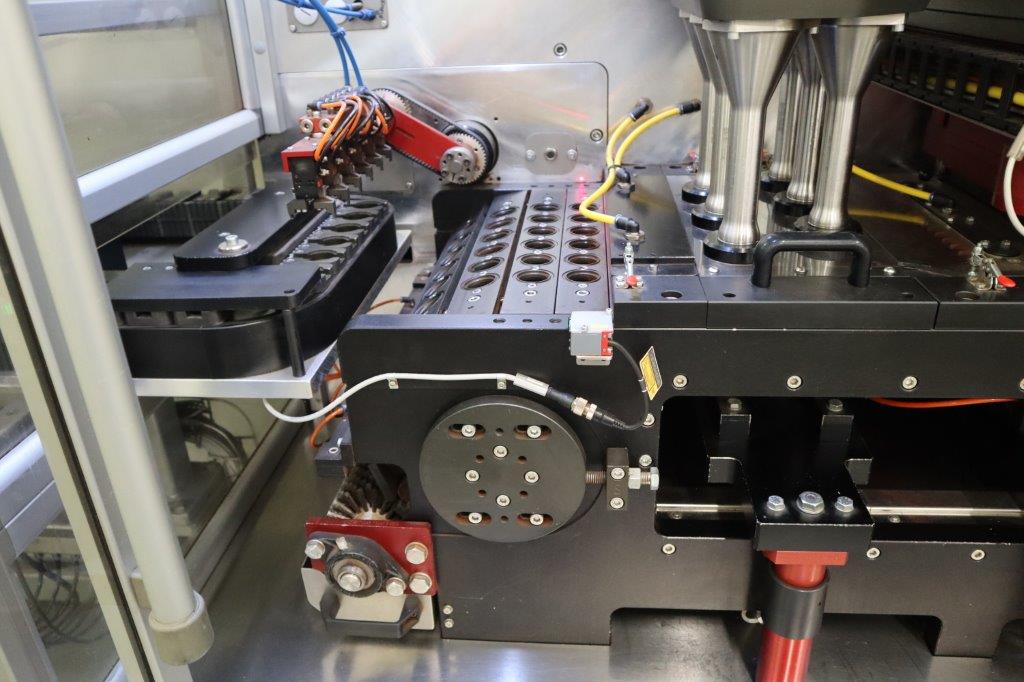

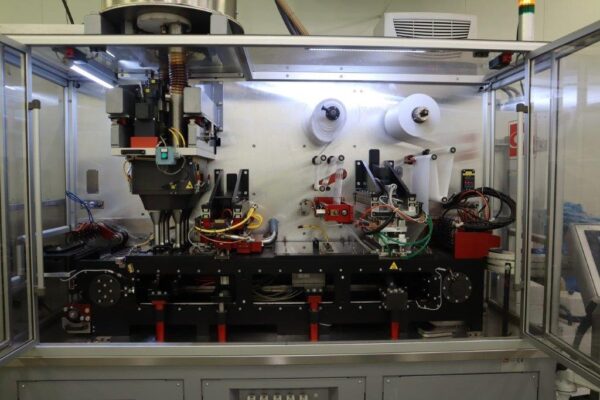

The Capsule Machine Process Description:

  1. Position1: Automatic Load of 6 capsules
  2. Position2: Capsule Insertion
  3. Position 3: Washing & Saturation with Inert Gas
  4. Position 4: Product dosing process
  5. Position 5: Pressing & Cleaning the capsules
  6. Position 6: Weighing the Capsules
  7. Position 7: Die Cutting & Sealing the Lidding film
  8. Position 8: Unloading good pieces and Waste

All automatic stations: Dosing, Cleaning & Die-cutting, can be easily accessed and removed for cleaning and maintenance.

An Industrial Fridge is installed on top which  helps to maintain the right temperature of the Die-Cut during operation and a fast reduction in temperature when taken off.

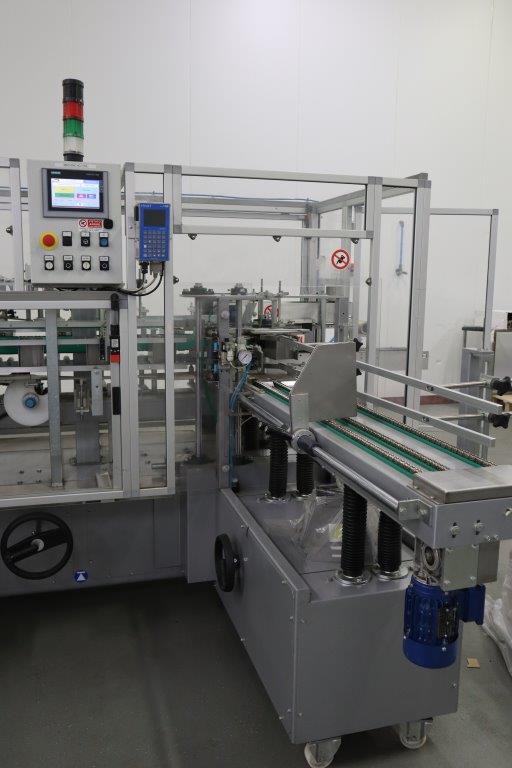

Spreafico Top Load Cartoner – Model B3

This connects in-line with the Spreafico SRC6 Capsule line

It comes complete with tooling for both 10 Capsules/ Pack & 20 Capsules /Pack set up.

Technical data:

Customers 10 Pack Carton size: 8.6 x 3.8 x 14.5 cm

Customers 20 Pack Carton Size: 11.6 x 3.8 x 18 cm

Parameters:

Smallest Size: 7 x 3 x 12 cm

Maximum Size: 15 x 15 x 22 cm

Changeover is very simple. You have to set the Cartoner to ‘Manual’, move in front, changing manually 26  x funnel+pocket (using ‘jog’ button), adjust magazine for empty boxes and press desired recipe on the HMI screen.

It takes approx. 20mins to change from one carton size to another.

The Magazine for empty boxes only needs to be adjusted for different measurements.

Technical data:

  • Electrical Supply: 400v 50Hz 3Phase + neutral + ground
  • Compressed Air: 200 nl/min 6 BAR at disposal
  • Noise: 80dB
  • Colour RAL 9006

The line was taken out of production in 2019 and placed into dry storage.

Inspections are available to see it in storage if required.

  • NB: Icoperfex Colombini TA250/400 Grinder Included.
  • PRICE REDUCED for quick sale – Excellent Value Coffee Capsule Line
  • Location: UK

Please contact us for further details.

Spreafico SRC6 Capsule Filling & Packing Video:
