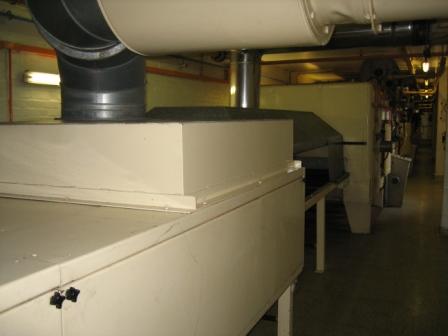

Spooner – Granola Oven & Cooler – SOLD
This oven will also be suitable for biscuits and other similar products.
Line overview:
• Original product: Granola clusters
• Equipment manufacturer: Spooner Industries
• Year of build: Unknown – Late 1980’s.
• Condition: Good.
• Main construction: Mild steel painted.
• Line belt width: 1219mm
• Total line length of oven and cooler: 43m
Oven specification:
• 5 section forced convection direct fired oven.

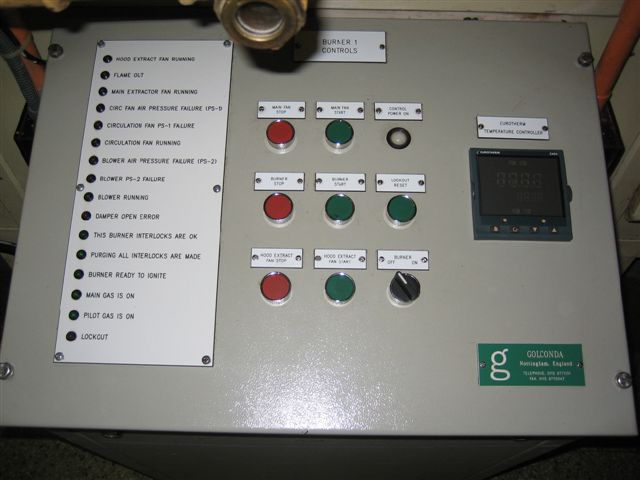

• 5 off Stordy Hawk burners NMG115 with flame rod.
• Airflow dampers and exhaust dampers.
• Double outlet recirculation fan, 1 per zone.
• 4 off hinged access doors per oven section.
• 1219mm 395B Teflon woven belt.
• 1 off common exhaust fan with ductwork.
• 1 off infeed hood fan.
• Total bake chamber length = 25m
Cooler specification:
• 3.5m lg hood section between oven and cooler.
• 8.5m lg cooler
• A combination of refrigerated air and outside air is used to cool the product.
• 1219mm 395B Teflon woven belt.
• Forced convection cooling via a top nozzles.
• “Carrier” packaged DX fridge plant 44kw duty.
• Ambient air inlet fan “Woods” 480mm.
Further information including process, layout, and electrical drawings are available on request
