Complete Bespoke conveyor Sorting and Grading Line for Citrus Fruits – SOLD
This line was built to order in 2001
Comprises:
1 x Belt Conveyor 600mm wide x 3 Metres Long. The device is mounted on wheels for easy placement for working in conjunction with the bin tipping system
1 x Roller Conveyor – 1300mm wide x 1.0 + 2.5 Metres Long. The conveyor has an inclined section 1 Metre in length designed to accomodate product from either bins or cartons.
2 x Belt Conveyors – 400mm wide x 4.4Metres Long to feed empty boxes to roller conveyors (Position 8)
1 x Belt conveyor 300mm wide x 2Metres Long, to infeed the conveyor (position 5) under the roller inspection (position 2)
2 x Belt conveyors 300mm wide x 2Metres Long, to feed class 2 bin filling and reject bin.
2 x Operator Platforms with steps, fitted with guard rails and kick plates. Treads and platform manufactured from Durbar plating and chutes.

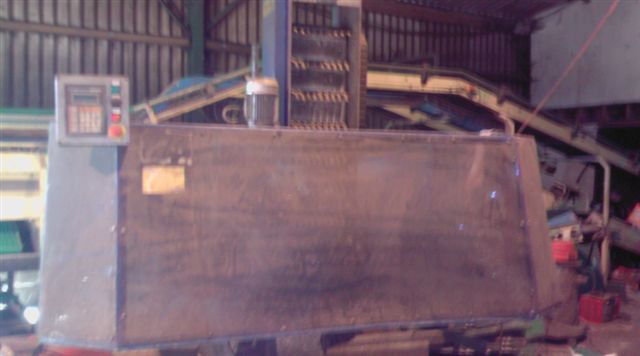

1 x Automatic double bin filler to receive class 1 fruit for storage prior to using as pre-graded fruit on packaging lines.The machine will accept two bins filling one at a time. All citrus can be used as the device has a soft fill system.
2 x Gravity roller infeed system to supply empty cartons to the packing stations. The system can receive cartons from the front or the rear of the line.
2 x Belt conveyors, 250mm wide x 6.0Metres Long, to infeed class 2 fruit to the packing stations.
2 x Belt conveyors, 300mm wide x 6.0Metres Long, to infeed class 1 fruit to the packling stations.
10 x Packing Stations, for place packing citrus fruits into cartons and trays. Each station is pneumatically operated to assist in the transfer of full cartons to the outfeed conveyors.
2 x Belt conveyors, 600mm wide x 5.2Metres Long, to take away full cartons or trays to the Rollers (Position 13)
2 x Free Rollers, 600mm wide x 1.0Metre Long to receive full cartons or boxes

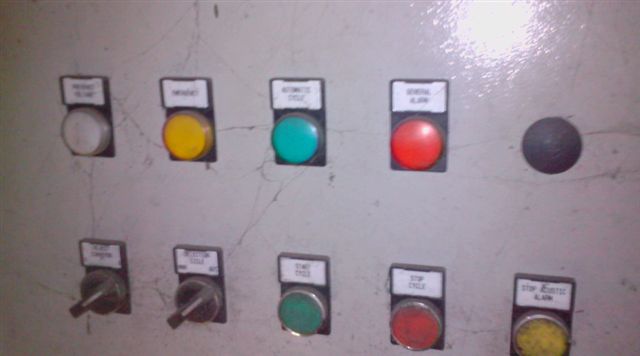

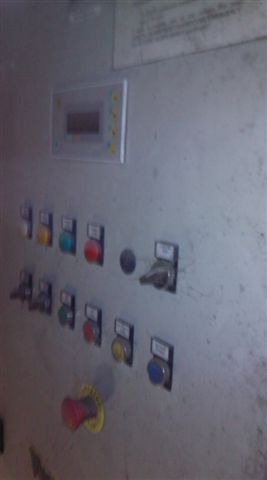

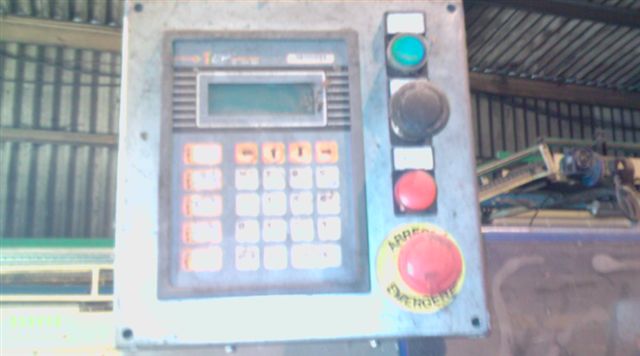

1 x Electrical Control Cabinet, designed to control all electrical and sequential requirements of the line. All pneumatic position flaps to select Class 1 & Class 2 packing positions as well as fruit reservoirs.
Excellent Value
SOLD
