Jacob White TLX-3
Manufacturer:
Jacob White
Model:
TLX-3
Machine status:
Sold
Year:
2013
Machine ID:
1681
Category:
Sold Machines

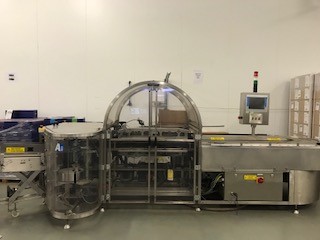

Jacob White TLX-3 Semi-Automatic Cartoner
SOLD
Year 2013
Fitted with additional flap closers.
It was previously being used to pack coffee capsules into cartons.
Standard Features:
a) 15″ (381mm) Pitch Carton Conveyor chain
b) Rotary carton feeder
c) Carton magazine low level warning
d) 3 or 4 chain carton conveyor
e) Nordson Problue series hot melt glue applicator
f) Toothed belt drives
Machine Specification:
Machine Setting Data
Vacuum Pressure: 20-25 Hg (0.65 – 0.85 bar)
Compressed Air Supply: 80lb/inch sq (6 bar) Minimum
Air limit switch setting: 40lb/inch sq (2.75 bar)
Electrical Power Supply: 400-230volts 3 Phase 50/60Hz
Total Electrical Load: 10kVA (Standard)
Technical Data:
Carton Size Parameters: DIM A (length) = 138 – 310mm (4 chains)
DIM A (length) = 108 – 310mm (3 chains)
DIM B (width) = 44 – 225mm (15″ pitch)
DIM B (width) = 44 – 200mm (10″ pitch)
DIM B (width) = 44 – 150mm ( 7.5″ pitch)
DIM C ( height) = 20 – 100mm
Bottom Flap = 75mm Maximum Length
Max. Blank Size:
Across i.e DIM A + ( 2 x longest flap) = 460mm
Width i.e DIM B + DIM C – 250mm
Machine Dimensions (mm):
Overall Length – 3992
Overall Width – 1080
Overall Height – 3992 =/- 25
Discharge Height – Depends on carton size
Machine Weight Unpacked – 1600Kg
It is in excellent running condition and available immediately.
This has been running in conjunction with an OPEM CR-2P Coffee
Capsule packing line under Machine ID:1680.
Location: London, UK
Great value cartoner for its age and condition.
SOLD
