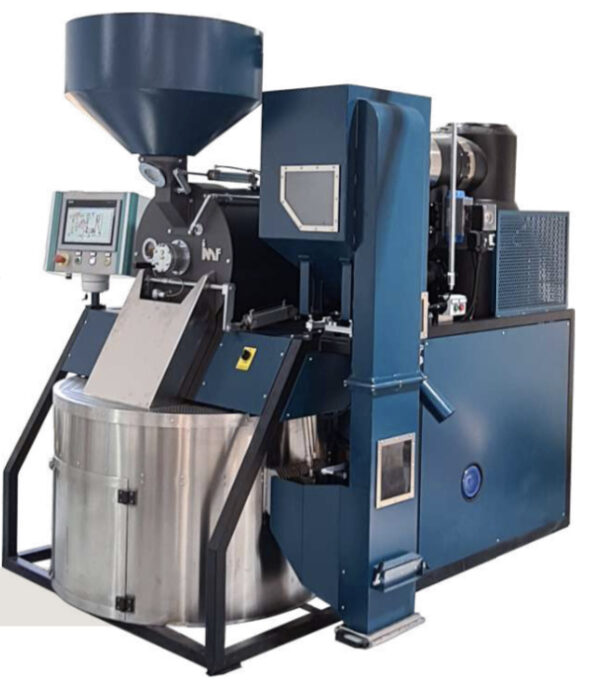

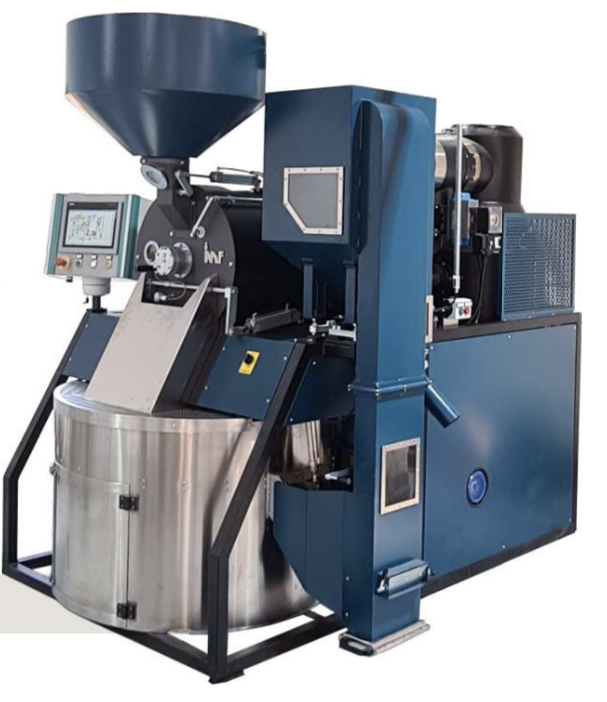

IMF RM30 Coffee Roaster – New to order

SHP is proud to be the UK agents for I.M.F Srl who manufacture these roasters from their factory in Occhiobello, Italy.

IMF industrial roasters are ideal for high volume production, with a focus on process optimisation, costs and harmful emissions reduction and energy savings.
All IMF models are equipped with a particular re-circulation of hot air system through a single heating chamber with double function, allowing the energy necessary for the roasting process and reducing
emissions concentration at the same time.

VORTEX
Thanks to the patented VORTEX system, the generated hot air is mixed with fresh air to reach accurate temperature control in the roasting drum for a perfect and consistent roasting process.
The internal air partition conveyance system allows the heat to be equally distributed internally and externally of the roasting chamber, ensuring a uniform heat transfer to each single coffee bean, for
a gentle and perfect roast.
The integrated software of the roasting process developed by IMF allows you to preset and control roasting parameters such as airflow and rotational drum speed, in order to achieve a highly accurate repeatability of batches.

RM30 Technical Features:

Kg/batch: flexible 8- 30
Roasting time: flexible 8- 20 minutes
Output: up to 120 kg/h
Roasting profile control
Double function heating chamber
Full automatic process
Compact design

FEATURES & ADVANTAGES OF ROASTING ON AN IMF RM30 ROASTER

QUALITY AND EFFICIENCY

• Convection roasting method – indirect hot air heating
• Designed drum for accurate air/beans blending ratio
• Single burner for roasting and emission treatment
• Significant reduction in gas consumption
• Heat recycle system for high performance energy saving
• Internal insulated pipes for safety and heat retention
• Low emission levels
• Chaff collecting cyclone with automatic extraction
• Stainless steel cooling tray
• Compact lay-out,reduced footprint
• Dark roasting profile available

CONTROL MANAGEMENT AND SAFETY

• Insulated hot air pipes
• Water quenching in the roasting drum available
• Roasting profile management software
• Vortex patented valve for accurate air temperature control
• Control system for roasting airflow and drum speed regulation
• Modulating heat power
• Rate of rise (RoR) control
• Accurate batch repeatability
• HMI Touch panel
• PLC
• Compatibility with external roasting software
• Ethernet port for PC connection
• Router for remote assistance service

Please contact James Jordan

Email:

Mobile/Whatspp: +44(0)7732 505 229 to discuss your requirements in more detail.
